Description

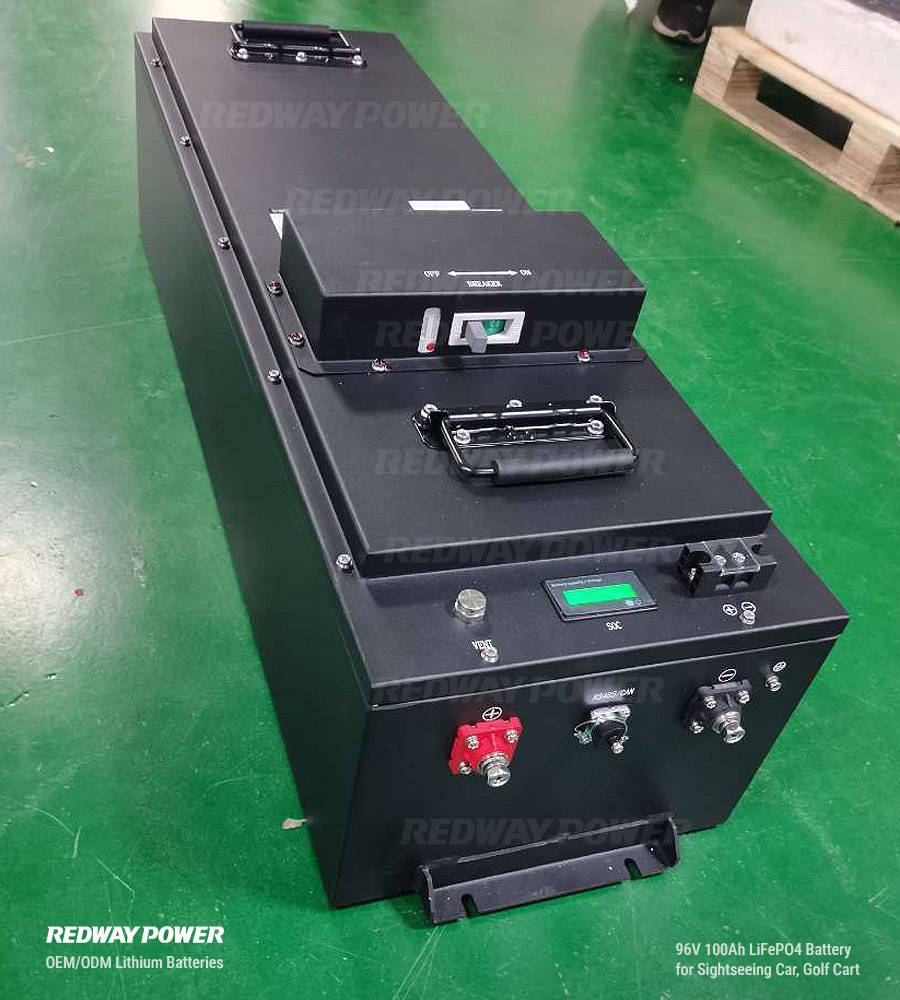

Our 96V 100Ah LiFePO4 Battery is engineered for high-performance applications, delivering 9.6kWh of energy with exceptional cycle life and durability. Designed for industrial, commercial, and renewable energy storage systems, this lithium battery combines advanced BMS protection, compact dimensions, and OEM-ready customization to meet diverse power needs.
Key Features
High Energy Density: Compact 950 ¡Á 295 ¡Á 289 mm design packs 9.6kWh, ideal for space-constrained installations.
Long Cycle Life: Over 6,000 cycles at 80% depth of discharge ensures decades of reliable operation.
Robust Safety: Smart BMS safeguards against overcurrent, temperature extremes, and voltage fluctuations.
Wide Temperature Range: Operates from -20¡ãC to 65¡ãC, with optional self-heating for cold climates.
IP67 Protection: Dustproof, waterproof, and shock-resistant metal casing for harsh environments.
Product Description
As a leading lithium battery manufacturer, we specialize in high-voltage solutions like the 96V 100Ah LiFePO4 Battery, optimized for electric vehicles, solar storage, and industrial equipment. With a 20-year design life and 5-year warranty, this battery supports continuous 250A discharge and rapid 100A charging. Its modular architecture enables seamless OEM integration, while optional upgrades like 4G, GPS, or solar MPPT enhance versatility.
How Does a 96V 100Ah LiFePO4 Golf Cart Battery Work?
The 96V 100Ah LiFePO4 battery consists of lithium iron phosphate cells arranged to produce a nominal voltage of 96 volts and a capacity of 100 ampere-hours. The LiFePO4 chemistry offers a flat discharge curve, maintaining stable voltage output during most of the discharge cycle. An integrated advanced BMS continuously monitors voltage, current, temperature, and state of charge to protect against overcharge, over-discharge, short circuits, and overheating, ensuring safety and maximizing battery longevity.
What Are the Key Benefits of Using a 96V 100Ah LiFePO4 Battery in Golf Carts?
-
High Energy Capacity: Provides approximately 9.6 kWh of energy for extended runtime.
-
Long Cycle Life: Over 6000 cycles at 80% depth of discharge, significantly reducing replacement frequency.
-
Lightweight and Compact: Weighs about 90 kg with dimensions 950 x 295 x 289 mm, saving space and improving vehicle efficiency.
-
Fast Charging: Supports continuous charge currents up to 100A, enabling full recharge in roughly 2 hours.
-
Robust Safety Features: IP67-rated metal enclosure protects against dust and water; smart BMS ensures safe operation.
-
Wide Operating Temperature Range: Functions reliably from -20°C to 65°C.
-
Customizable Options: Includes Bluetooth monitoring, self-heating, CAN-bus communication, GPS, and more.
Which Vehicles and Applications Are Best Suited for a 96V 100Ah LiFePO4 Battery?
This battery is ideal for:
-
Golf carts and sightseeing vehicles.
-
Low-speed electric vehicles (LSVs).
-
Electric motorcycles and scooters.
-
Electric tricycles and cabin scooters.
-
Small electric boats and utility vehicles.
Its versatility and high energy output make it suitable for a wide range of electric mobility solutions.
Why Is the Battery Management System (BMS) Critical for This Battery?
The BMS safeguards the battery by monitoring each cell’s voltage, current, and temperature. It prevents unsafe conditions such as overcharging, deep discharging, overheating, and short circuits. The BMS also balances cells during charging to maintain uniform capacity, extending battery life and ensuring consistent performance.
How Long Does It Take to Charge a 96V 100Ah LiFePO4 Golf Cart Battery?
Charging time depends on the charger’s current output:
| Charger Current | Approximate Charging Time | Notes |
|---|---|---|
| 50A | ~2 hours | Standard charging rate |
| 100A | ~1 hour | Fast charging, requires compatible charger |
| Lead-Acid | 8-12 hours | For comparison |
Using a charger designed for LiFePO4 chemistry is essential to protect battery health and optimize charging speed.
What Are the Technical Specifications of a Typical 96V 100Ah LiFePO4 Battery?
| Specification | Value |
|---|---|
| Nominal Voltage | 96 V |
| Nominal Capacity | 100 Ah |
| Nominal Energy | 9.6 kWh |
| Max Charge Voltage | 109.5 V |
| Discharge Cut-off Voltage | 75 V |
| Max Continuous Charge Current | 100 A |
| Max Continuous Discharge Current | 250 A |
| Peak Discharge Current | 300 A (10 seconds) |
| Dimensions (L x W x H) | 950 × 295 × 289 mm |
| Weight | 90 kg |
| IP Rating | IP67 |
| Cycle Life | >6000 cycles (80% DOD) |
| Self-Discharge Rate | 2% per month |
| Charge Temperature | 0°C to 60°C |
| Discharge Temperature | -20°C to 65°C |
| Communication Protocols | RS485, CAN-bus |
| Optional Features | Bluetooth, Self-heating, GPS, LCD, Solar MPPT, etc. |
Can a 96V 100Ah LiFePO4 Battery Replace Lead-Acid Batteries in Golf Carts?
Yes. Compared to lead-acid batteries, LiFePO4 batteries offer higher energy density, longer lifespan, lighter weight, faster charging, and lower maintenance. This results in improved vehicle performance, reduced downtime, and lower total cost of ownership.
Where Can You Purchase Reliable 96V 100Ah LiFePO4 Golf Cart Batteries?
Heated Battery provides high-quality 96V 100Ah LiFePO4 golf cart batteries featuring advanced BMS, customizable options, and robust safety standards. Available through authorized distributors and online, Heated Battery products come with warranties and expert technical support.
How Does Temperature Affect the Performance of a 96V 100Ah LiFePO4 Battery?
The battery performs optimally between -20°C and 65°C. Cold temperatures may temporarily reduce capacity and discharge rates, but the battery’s BMS and optional self-heating features help maintain performance. High temperatures accelerate aging, so proper thermal management is important.
What Environmental Benefits Do LiFePO4 Golf Cart Batteries Offer?
LiFePO4 batteries are environmentally friendly due to:
-
Non-toxic iron phosphate chemistry.
-
Long lifespan reducing waste and replacements.
-
High energy efficiency lowering energy consumption.
-
Recyclability of lithium and iron components.
These factors contribute to greener, sustainable electric mobility.
How Does Cell Balancing Improve Battery Performance?
Cell balancing ensures all cells charge and discharge evenly, preventing weak cells from limiting overall capacity. This extends battery life, maintains consistent voltage, and improves safety.
Heated Battery Expert Views
The 96V 100Ah LiFePO4 golf cart battery embodies the future of electric mobility power solutions. At Heated Battery, we focus on integrating intelligent BMS and thermal management systems to deliver safe, reliable, and long-lasting performance. Our batteries provide golf cart users with extended run times, rapid charging, and minimal maintenance, making them a cost-effective and environmentally responsible choice. We are committed to supporting the evolving needs of electric vehicle operators worldwide. — Senior Battery Engineer, Heated Battery
How Does the Cycle Life of a 96V 100Ah LiFePO4 Battery Compare to Other Battery Types?
LiFePO4 batteries typically exceed 6000 cycles at 80% depth of discharge, far surpassing lead-acid batteries which usually last 300-500 cycles. This longevity reduces replacement frequency and overall costs.
What Maintenance Is Required for a 96V 100Ah LiFePO4 Golf Cart Battery?
Maintenance is minimal:
-
Use compatible LiFePO4 chargers.
-
Avoid deep discharges below cutoff voltage.
-
Store in a cool, dry place.
-
Periodically inspect connections and clean terminals.
When Should You Replace Your 96V 100Ah LiFePO4 Battery?
Replace when capacity falls below 70-80% of original rating or when runtime and charging efficiency degrade significantly. Regular capacity testing helps monitor battery health.
