Description
As a leading lithium-ion battery manufacturer, we specialize in high-performance OEM solutions for industrial and commercial applications. Our advanced lithium batteries deliver exceptional energy density, extended cycle life, and reliable power for demanding environments. Designed for seamless integration, they ensure longevity with proper usage and upkeep.
Key Features
Our lithium batteries are engineered for durability and efficiency. The 48V 100Ah LiFePO4 Golf Cart Battery features ultra-fast charging, thermal stability, and a modular design for easy maintenance. Built with Grade-A cells, these batteries offer 5,000+ cycles at 80% depth of discharge, reducing long-term operational costs.
Product Description
Tailored for OEM partners, our lithium battery range supports customization in voltage, capacity, and form factor. The 48V 100Ah Golf Cart Battery exemplifies our commitment to innovation, combining lightweight construction with high discharge rates for material handling equipment. IP65-rated casings ensure resistance to dust and water ingress.

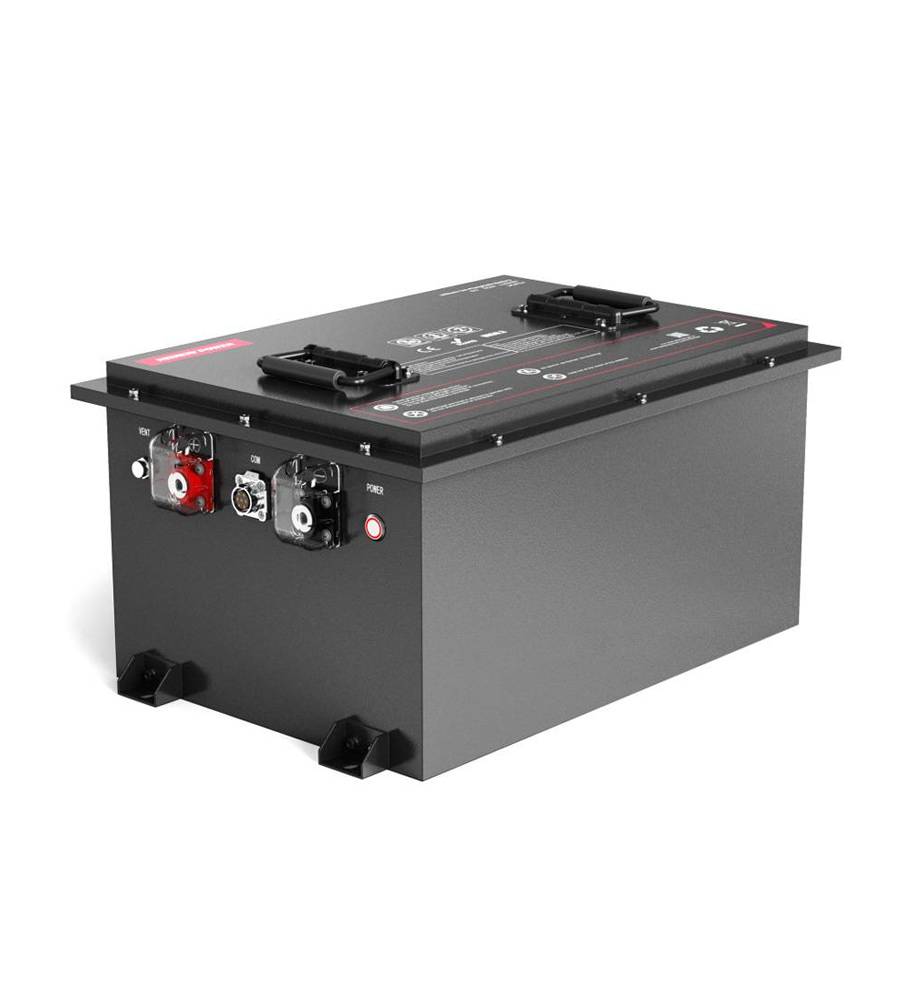

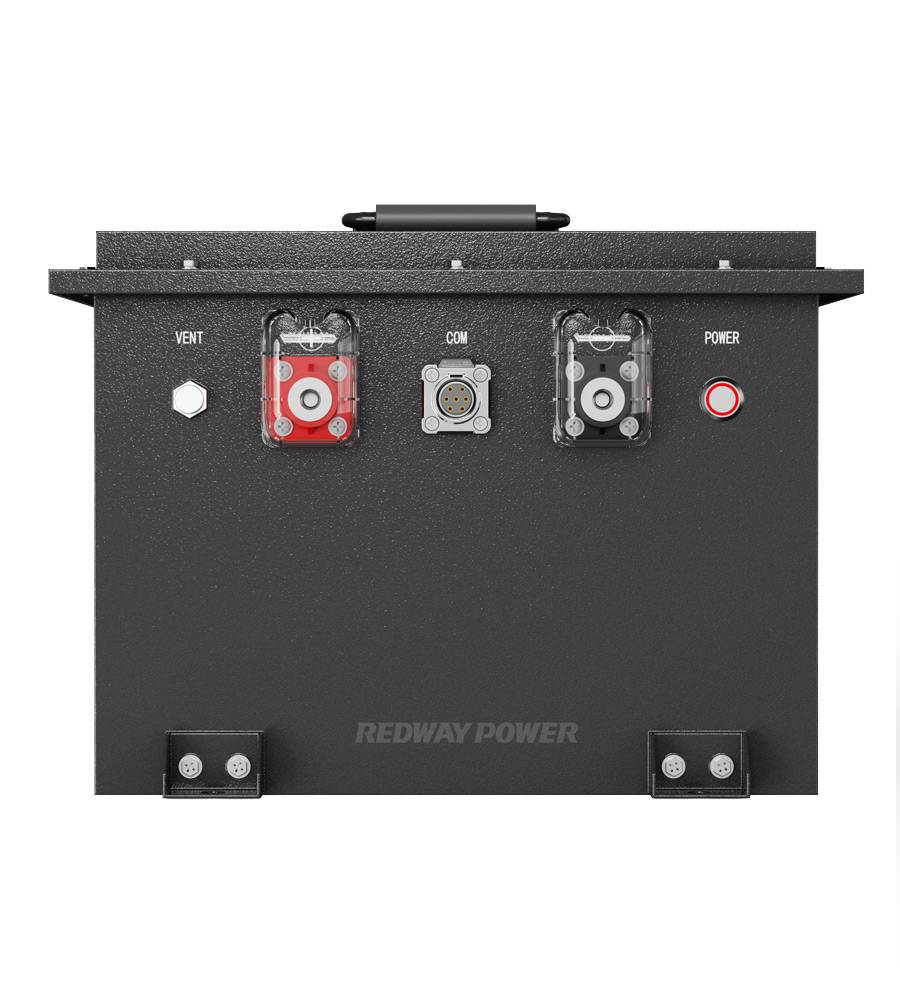

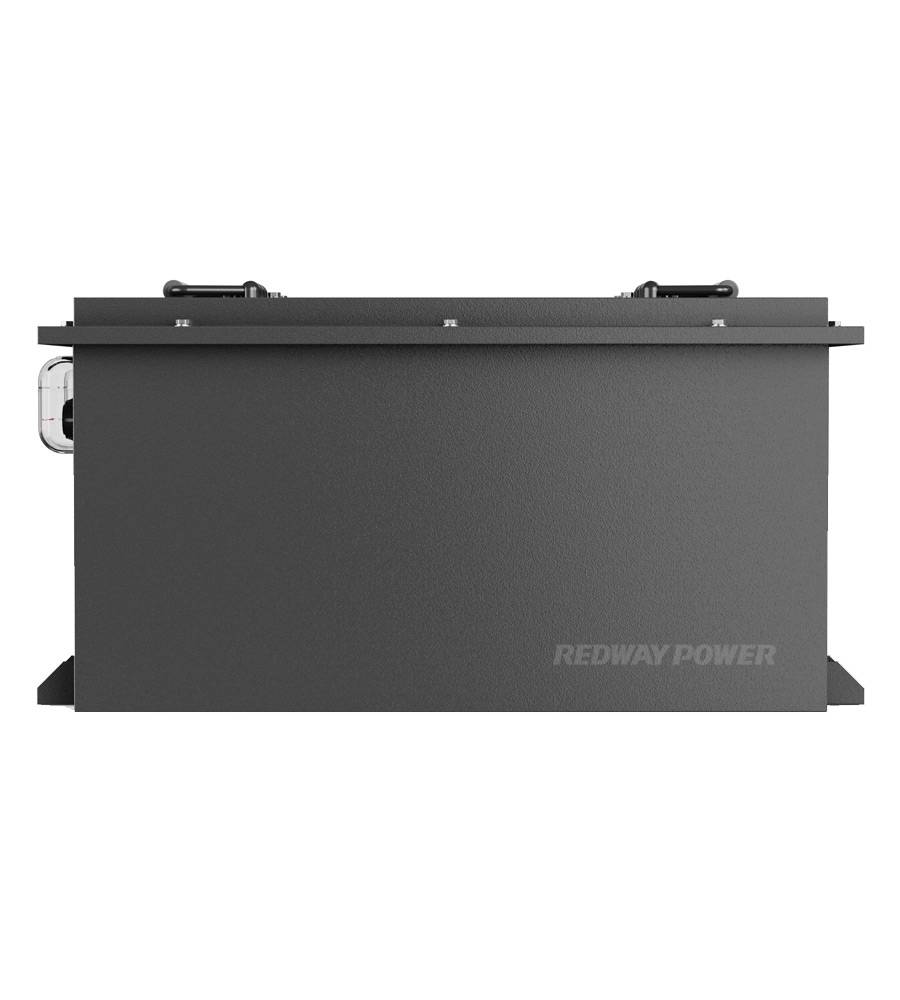

A 48V 100Ah Golf Cart LiFePO4 battery with a 200A Battery Management System (BMS) provides reliable, high-capacity power with enhanced safety and long cycle life. Designed for golf carts and electric vehicles, it offers fast charging, lightweight construction, and minimal maintenance, making it a superior alternative to traditional lead-acid batteries.
What Are the Key Specifications of a 48V 100Ah Golf Cart LiFePO4 Battery (BMS 200A)?
This battery delivers a nominal voltage of 51.2V and a capacity of 100Ah, equating to approximately 5.12 kWh of usable energy. It supports continuous discharge currents up to 200A and peak discharge currents of 250A for short bursts. The battery typically weighs around 43-45 kg and measures approximately 500 x 350 x 250 mm. It features an IP65-rated metal casing for dust and water resistance and operates efficiently within a temperature range of -20°C to 60°C. The integrated 200A BMS provides protections against overcharge, over-discharge, short circuits, and temperature extremes, while enabling cell balancing and communication via RS485 or CAN-bus.
| Specification | Detail |
|---|---|
| Nominal Voltage | 51.2V |
| Capacity | 100Ah |
| Energy | ~5.12 kWh |
| Dimensions (L×W×H) | ~500 x 350 x 250 mm |
| Weight | 43-45 kg |
| Continuous Discharge Current | 200A |
| Peak Discharge Current | 250A (short bursts) |
| Operating Temperature Range | -20°C to 60°C |
| Cycle Life | >6000 cycles (80% DOD) |
| Battery Management System | Integrated 200A BMS |
| IP Rating | IP65 |
How Does the 200A BMS Improve Battery Performance and Safety?
The 200A BMS continuously monitors voltage, current, temperature, and state of charge to prevent overcharging, over-discharging, short circuits, and overheating. It balances cells to maintain uniform voltage, extending battery life and ensuring optimal performance. Communication protocols like RS485 and CAN-bus enable real-time monitoring and diagnostics for proactive maintenance and safety.
What Are the Advantages of LiFePO4 Chemistry for Golf Cart Batteries?
LiFePO4 batteries offer:
-
Long Cycle Life: Over 6000 cycles at 80% depth of discharge.
-
Thermal Stability: Reduced risk of thermal runaway and fire.
-
Lightweight: Approximately half the weight of lead-acid batteries.
-
Fast Charging: Typically 3-5 hours for full charge.
-
Low Maintenance: No watering or equalizing required.
-
Environmentally Friendly: Non-toxic materials and recyclable components.
These benefits reduce total cost of ownership and improve reliability.
How Does a 48V 100Ah LiFePO4 Battery Enhance Golf Cart Performance?
This battery provides consistent power for longer run times and smoother acceleration. Its lightweight design improves vehicle handling and efficiency. The advanced BMS ensures battery safety and longevity, while fast charging reduces downtime, supporting extended use and multi-shift operation.
What Maintenance Is Required for a 48V 100Ah LiFePO4 Golf Cart Battery?
Maintenance is minimal compared to lead-acid batteries. Users should:
-
Keep terminals clean and free from corrosion.
-
Avoid deep discharges below recommended voltage.
-
Store the battery at partial charge if unused for extended periods.
-
Monitor battery health via BMS or compatible software.
-
Use a charger designed for LiFePO4 chemistry.
Proper care extends battery life and maintains performance.
Which Golf Cart Models Are Compatible with This Battery?
The 48V 100Ah LiFePO4 battery fits many popular golf cart brands including Club Car, EZGO, Yamaha, and others using 48V systems. Its standard dimensions and terminal configurations facilitate easy OEM replacements or aftermarket upgrades.
What Environmental Benefits Do LiFePO4 Golf Cart Batteries Offer?
LiFePO4 batteries contribute to sustainability by:
-
Using non-toxic, recyclable materials.
-
Offering longer lifespans, reducing waste.
-
Providing high energy efficiency.
-
Eliminating acid spills and hazardous emissions.
-
Supporting greener, safer energy solutions.
How Does Heated Battery Enhance the 48V 100Ah LiFePO4 Battery Experience?
Heated Battery integrates smart BMS technology with optional self-heating elements to maintain optimal battery temperature in cold climates, preventing capacity loss and ensuring reliable performance. Their rugged IP65-rated metal cases and real-time monitoring via Bluetooth or CAN-bus deliver dependable power and extended battery life in harsh environments.
What Are the Cost Considerations When Choosing a 48V 100Ah LiFePO4 Battery?
While the upfront cost is higher than lead-acid batteries, total cost of ownership is lower due to:
-
Extended cycle life reducing replacements.
-
Minimal maintenance expenses.
-
Faster charging increasing availability.
-
Energy savings from higher efficiency.
-
Reduced environmental disposal costs.
Trusted brands like Heated Battery provide warranty support and reliability.
Heated Battery Expert Views
The 48V 100Ah LiFePO4 golf cart battery with 200A BMS offers a perfect blend of power, safety, and efficiency for electric vehicles. Heated Battery’s integration of heating technology and intelligent BMS ensures consistent, reliable performance and extended battery life, especially in cold climates. This battery supports sustainable, low-maintenance, and high-performance energy solutions.
— Senior Battery Engineer, Heated Battery
How Can Users Maximize the Lifespan and Performance of Their 48V 100Ah LiFePO4 Battery?
To optimize battery life and performance:
-
Use chargers designed specifically for LiFePO4 chemistry.
-
Avoid deep discharges below 20% state of charge.
-
Store batteries at partial charge if unused.
-
Operate within recommended temperature ranges.
-
Regularly monitor battery health.
-
Keep terminals clean and connections secure.
Can Multiple 48V 100Ah LiFePO4 Batteries Be Connected?
Yes, batteries can be connected in series to increase voltage or in parallel to increase capacity and runtime. Proper matching and BMS coordination are essential for safe and efficient operation.
What Are Common Misconceptions About 48V 100Ah LiFePO4 Golf Cart Batteries?
-
They are too expensive: Higher upfront cost is offset by longer lifespan and efficiency savings.
-
They require complex maintenance: LiFePO4 batteries are low-maintenance compared to lead-acid.
-
They are unsafe: LiFePO4 chemistry is among the safest lithium-ion types.
-
They don’t perform well in cold climates: Heated Battery’s heating solutions ensure reliable cold-weather performance.
