Description

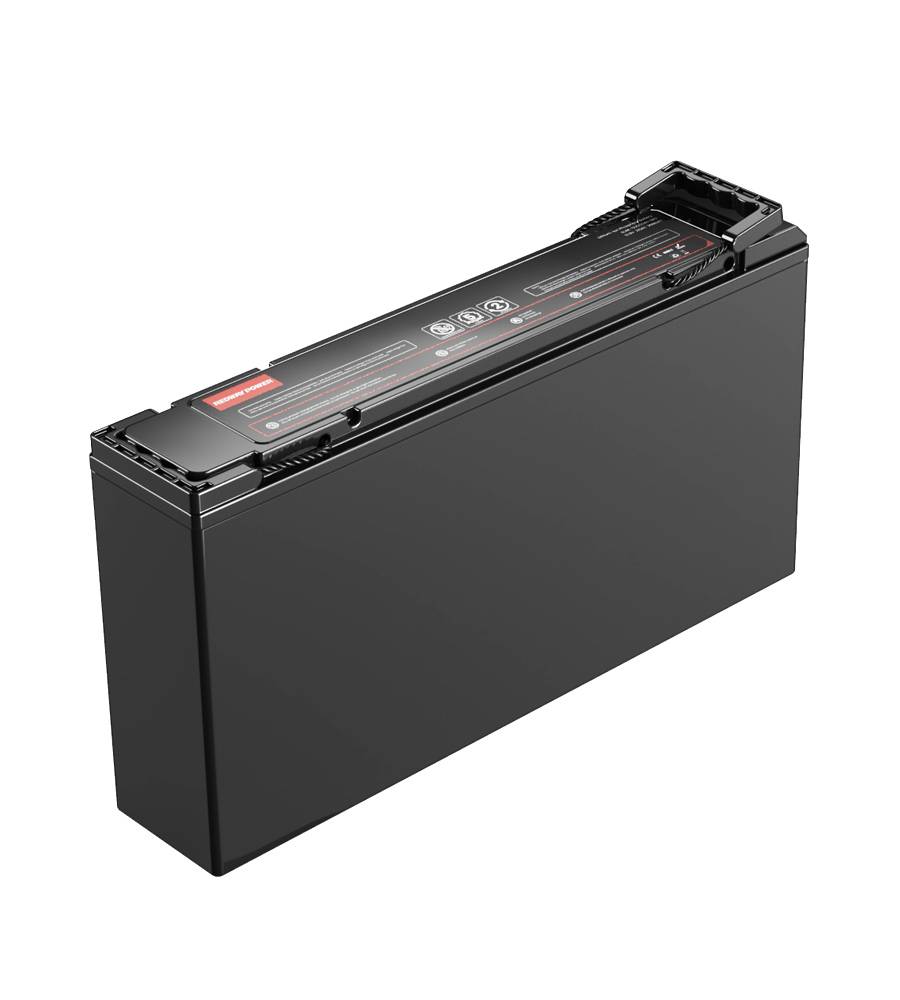

Our 24V 100Ah lithium battery delivers high-performance energy storage with a compact, IP65-rated ABS case. Built using LiFePO4 technology, it offers 2560Wh capacity, 4000+ cycles at 80% DoD, and smart BMS protection. Ideal for OEM applications, industrial equipment, and renewable systems, this battery combines durability with flexible connectivity options like Bluetooth, CAN, and self-heating upgrades.
Key Features
High Energy Density: 2560Wh capacity in a 21 kg design ensures lightweight power for mobile and stationary applications.
Extreme Durability: Operates from -20¡ãC to 60¡ãC with optional self-heating for cold environments.
Smart Integration: Built-in BMS with Bluetooth, WiFi, or 4G compatibility enables real-time monitoring and diagnostics.
Scalable Power: Supports up to 4 parallel connections for expanded capacity without voltage drop.
Product Description
As a leading lithium battery manufacturer, we engineered this 24V 100Ah LiFePO4 unit for OEM partners and wholesale buyers requiring reliable, maintenance-free energy. The M8 terminals and ¡Ü10m¦¸ internal resistance ensure efficient power transfer, while ABS casing and IP65 rating withstand harsh environments. Its 10-year design life and 2% monthly self-discharge rate make it superior to traditional lead-acid alternatives.
The 24V 100Ah LiFePO4 battery with cylindrical cells offers exceptional durability, high energy density, and enhanced safety, making it ideal for applications such as solar energy storage, electric vehicles, and industrial equipment. Its built-in Battery Management System (BMS) ensures balanced charging and discharging, while its cylindrical cell design provides improved thermal management and mechanical stability for long-lasting, reliable performance.
What Are the Key Specifications of the 24V 100Ah LiFePO4 Battery with Cylindrical Cells?
This battery typically has a nominal voltage of 25.6V, achieved by connecting eight 3.2V cylindrical LiFePO4 cells in series. It delivers a capacity of 100Ah, providing approximately 2.56 kWh of usable energy. The battery supports a standard charge current of 20A and continuous discharge currents up to 100A, with peak discharge currents reaching 200A for short bursts. It weighs roughly 22 to 25 kg and measures about 520 x 270 x 220 mm, with an IP65 to IP66 waterproof rating. The integrated BMS protects against overcharge, over-discharge, short circuits, overcurrent, and temperature extremes, and supports communication protocols like CAN, RS485, or Bluetooth.
How Does the Cylindrical Cell Design Benefit the 24V 100Ah LiFePO4 Battery?
Cylindrical cells offer superior mechanical strength and enhanced thermal dissipation compared to prismatic or pouch cells. This design reduces the risk of swelling and improves heat management during charge and discharge cycles, contributing to longer battery life and safer operation. The modular nature of cylindrical cells also facilitates easier maintenance and replacement.
Why Is LiFePO4 Technology Preferred for 24V 100Ah Batteries?
LiFePO4 chemistry provides several advantages:
-
Long Cycle Life: Over 5,000 cycles at 80% depth of discharge.
-
Enhanced Safety: Stable chemistry with low risk of thermal runaway.
-
Lightweight and Compact: Higher energy density compared to lead-acid.
-
Fast Charging: Supports higher charge currents.
-
Maintenance-Free: No watering or equalization needed.
-
Environmentally Friendly: Non-toxic and recyclable materials.
These benefits make LiFePO4 batteries ideal for demanding applications requiring reliable, long-lasting power.
Which Applications Are Best Suited for the 24V 100Ah LiFePO4 Battery?
This battery is widely used in:
-
Solar energy storage systems.
-
Electric vehicles including golf carts, scooters, and small EVs.
-
Uninterruptible power supplies (UPS) and backup power.
-
Industrial automation and robotics.
-
Marine and recreational vehicles.
Its versatility and robust design make it suitable for a broad range of uses.
How Does the Battery Management System (BMS) Enhance Safety and Performance?
The integrated BMS continuously monitors cell voltages, current, temperature, and state of charge to prevent overcharging, deep discharging, short circuits, and overheating. It balances cells to ensure uniform performance and extends battery life. Advanced BMS units provide real-time data via Bluetooth or CAN protocols, enabling proactive maintenance and optimized battery usage.
What Are the Physical Dimensions, Weight, and Durability Features?
The battery’s dimensions typically measure 520 x 270 x 220 mm, with a weight between 22 and 25 kg. It is housed in a durable ABS plastic or metal casing with IP65 or IP66 waterproof ratings, suitable for outdoor and rugged environments. The robust design ensures resistance to vibration, impact, and environmental factors.
How Long Does the 24V 100Ah LiFePO4 Battery Last?
With proper use, the battery can achieve over 5,000 full charge-discharge cycles, equating to 10-15 years of service life. Its low self-discharge rate allows for long storage without significant capacity loss, making it reliable for seasonal or intermittent use.
Can the 24V 100Ah LiFePO4 Battery Be Customized?
Yes, Heated Battery offers customization options including voltage, capacity, charge/discharge current, casing materials, and communication protocols. Additional features such as self-heating modules for cold climates, LCD displays, and smart connectivity can be integrated to meet specific application requirements.
How Does Temperature Affect Performance and Safety?
The battery operates efficiently between -20°C and 60°C, with charging recommended above 0°C to maintain cell health. Self-heating options extend operation and charging in colder environments. The stable LiFePO4 chemistry combined with BMS protections minimizes risks related to temperature extremes, ensuring safe and reliable operation.
What Maintenance Is Required for the 24V 100Ah LiFePO4 Battery?
Maintenance is minimal. Users should keep terminals clean and tight, avoid deep discharges beyond recommended limits, store the battery in a cool, dry place when not in use, and use chargers compatible with LiFePO4 chemistry. Regular monitoring through the BMS or connected apps helps maintain optimal battery health.
Heated Battery Expert Views
“The 24V 100Ah LiFePO4 battery with cylindrical cells represents a robust and efficient energy solution for a wide range of applications. The cylindrical design enhances thermal management and mechanical stability, while Heated Battery’s advanced BMS integration ensures safety and longevity. This battery’s versatility and reliability make it a top choice for solar, electric vehicle, and industrial power needs.” — Senior Battery Engineer, Heated Battery
Conclusion: Key Takeaways and Recommendations
The 24V 100Ah LiFePO4 battery with cylindrical cells offers superior safety, long cycle life, and excellent thermal management. Its lightweight, compact design and integrated BMS make it ideal for solar storage, electric vehicles, and industrial applications. Heated Battery’s customization options provide tailored solutions to meet diverse requirements. Investing in this battery ensures reliable, efficient, and maintenance-free energy storage for years to come.
